Model: UP/UP+
Dimensions: Up: 442 x 295 x 54 (mm) / Up+: 329 x 295 x 54 (mm)
Weight: Up: 3.45 kg / Up+ 2.9 kg
Equipment: USB Type-C to C cable x1, USB Type-C to A cable x1, Manual x1
Color: Black

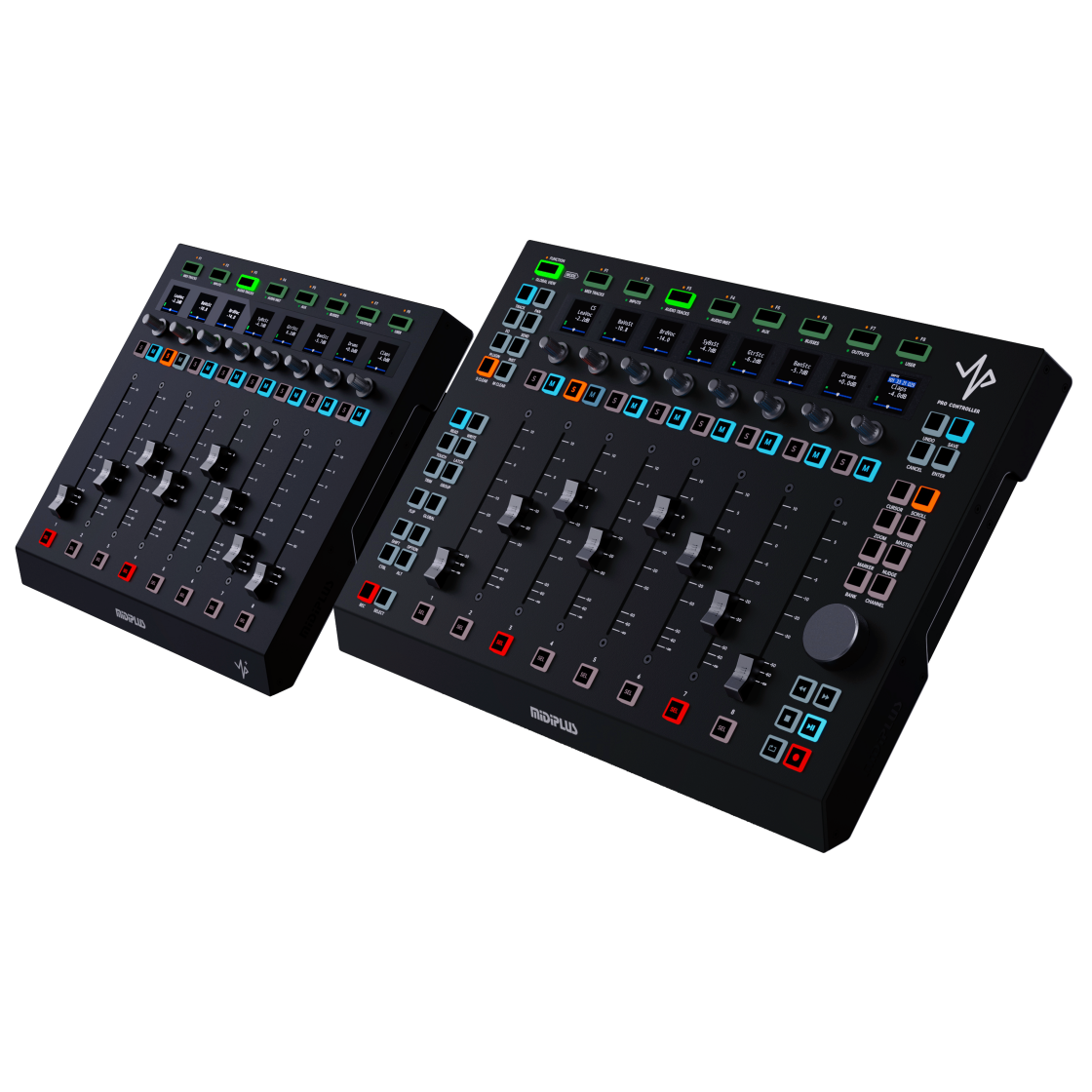

UP / UP+ DAW CONTROLLER
8-channel DAW controller compatible with HUI and MACKIE control protocols, Up & Up+ will help you work faster than ever.
UP series provide up to 32 touch-sensitive motorized faders, clickable rotary encoders, full-color displays and buttons with colorful RGB backlight, they can work with most popular DAWs seamlessly.
Gear now
Taking Up series as the core of your studio setup can help your mixing job easier. Up series have customized control mode for Logic Pro®、Pro Tools®、Cubase™ and Ableton® Live™.
Although keyboard and mouse are more common in use for DAW control, they will become more effective when working together with the Up series which have precise tactile control and automation functions.
The full-color display of the Up series with continuous visual feedback and intuitive control layout help you to stay creative lasting for a longer time.
Up has dedicated Read, Write, Touch, Latch, and Trim buttons for your session's automation controlling.
They also have 6 standard transport control buttons. You can use them for quick audio files editing, changing plug-in parameters, and managing aux channels. And most of all, you can use Up/Up+ to control track levels with only one finger.
With the Up series DAW controller, you'll enjoy the faster and more efficient workflow than ever before.
Up to 32 motorized faders
1-3 Up+s can be connected to an Up as its extensions. After connecting, you will have a controller which contains up to 32 channels.
It will be ideal for large masterings or mixing sessions.
Eight shortcut function buttons
The Up offers an easy access to eight shortcut functions for maximum flexibility.
Clickable jog wheel and companion buttons
Editand mix with greater efficiency and speed.
8-channel control
Each channel has a 100 mm touch-sensitive motorized fader.
LCD display screen Crystal Clear Full Color Displays
8 crystals clear give you clear visual feedback.
Function rotary encoders and buttons
Clickable rotary encoder and dedicated Solo, Mute, Select buttons.
STAND
To ensure that the mixing engineer can keep up with the current control status, the Up series are equipped with an ergonomic concealed feet which has two angles (8° and 0°) for adjustment, providing engineers with two choices for their needs.
| Faders | 8 x Touch-Sensitive, 100 mm Motorized Faders |
| Encoders | 8 x Clickable Rotary Encoders |
| Buttons | 73(Up) / 32(Up+) x Silicone Buttons with RGB Backlight |
| Displays | 8 x 1.3" Color LCD |
| Port | 1 x USB Type-C(Connect PC/MAC)、1 x USB Type-A(Connect UP)、1 x DC |
| Power Supply | Power Adapter (DC 12V/2.0A, Center - Positive) |
| Dimension (WxLxH) | Up：442 x 295 x 54 (mm)／Up+：329 x 295 x 54 (mm) |
| Weight | Up: 3.45 kg/7.6 Ibs; Up+ 2.9 kg/6.39 Ibs |
